Emitter parts

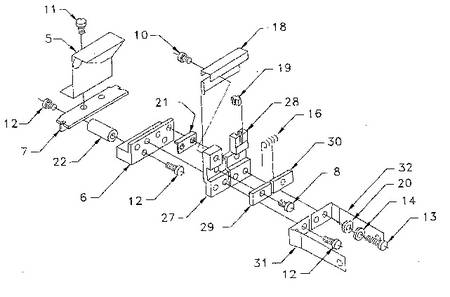

Emitter block for models 211,218, 231, 241/247, 568

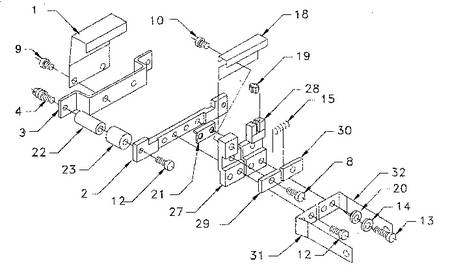

Emitter block for models 258,272

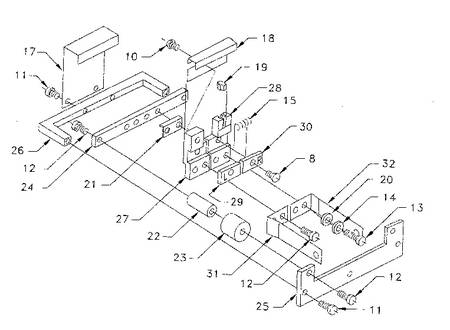

Emitter block for models 241, 247, 265, 266, 271, 277
Emitter Parts List
| Ref. | Part number | Description | Price |
|---|---|---|---|
| 1 | 253-0003-1 | Anode Plate | on request |
| 2 | 253-0017-2 | Mounting Bracket | on request |
| 3 | 253-0018-1 | Support Bracket | on request |
| 4 | 253-0040-1 | Mounting Screw | on request |
| 5 | 213-0003-3 | Anode Plate | on request |
| 6 | 213-0017-3 | Mounting Bracket | on request |
| 7 | 213-0018-3 | Support Bracket | on request |
| 8 | 271-6010-5 | Flat Head Slot Screw #6-32 x 1/4", Titanium | on request |
| 9 | 271-6020-1 | Soc.Head Cap Screw #6-32 x 3/16", SST (Box of 10) | on request |
| 10 | 271-6020-5 | Soc.Head Cap Screw #6-32 x 3/16", Titanium | on request |
| 11 | 271-6030-1 | SocHead Cap Screw #6-32 x 1/4", SST (Box of 10) | on request |
| 12 | 271-6050-1 | Soc.Head Cap Screw #6-32 x 3/8", SST (Box of 10) | on request |
| 13 | 271-6060-1 | Soc.Head Cap Screw #6-32 x 1/2", SST (Box of 10) | on request |
| 14 | 271-6242-1 | Flat Washer, #6, SS, (Box of 10) | on request |
| 15 | 273-0001-1 | Filament, 7 1/2 Turn. (Box of 5) | on request |
| 16 | 273-0002-1 | Filament, 5 Turn. (Box of 5) | on request |
| 17 | 273-0003-1 | Anode Plate | on request |
| 18 | 273-0004-2 | Beam Former | on request |
| 19 | 273-0005-1 | Insulator, Cross | on request |
| 20 | 273-0006-1 | Insulator, Collar | on request |
| 21 | 273-0008-1 | Insulator, L | on request |
| 22 | 273-0010-1 | Insulator, HV | on request |
| 23 | 273-0011-1 | HV Shield (Box of2) | on request |
| 24 | 273-0017-1 | Mounting Bracket | on request |
| 25 | 273-0018-1 | Emitter Support Bracket | on request |
| 26 | 273-0019-1 | U-Bracket | on request |
| 27 | 273-0031-1 | Cathode Block, Left | on request |
| 28 | 273-0032-1 | Cathode Block, Right | on request |
| 29 | 273-0033-3 | Filament Clamp, Left | on request |
| 30 | 273-0033-4 | Filament Clamp, Right | on request |
| 31 | 273-0035-1 | Filament Bus Bar, Left | on request |
| 32 | 273-0036-1 | Filament Bus Bar, Right | on request |
All emiiter parts listed above can be delivered ex stock.
Emitter Blocks and Emitter Parts Kits
We deliver emitter blocks and emitter spare parts kits for all Telemark electron guns ex stock. Emitter parts kits include all itmes necessary for a maintenance like screws, plates and insulators.
Complete Emitters
| Telemark Part# | Used on | Temescal Part# |
|---|---|---|
| 213-0150-1 | 211, 218,231,238,241,248, 286 | |
| 253-0150-1 | 272, 258 | |
| 273-0150-1 | All Telemark and Temescal multi pocket e-guns | 0204-0343-0 |
| 273-1914-1 | Temescal SFIH2, Gemini | 0304-1914-0 |
| 273-5354-1 | Temescal SFIH 270-1 | 0204-5354-0 |
| 273-9334-1 | Temescal SFIH 270-3 | 0303-9334-0 |
| 508-3150-2 | 508,528 |
Emitter Parts Kits
| Telemark Part# | Used on |
|---|---|
| 213-0700-1 | 211,218,231,238,241,248,268 |
| 253-0700-1 | 272, 258 |
| 273-0700-1 | All Telemark and Temescal multi pocket e-guns |
| 508-3700-1 | 508, 528 |
Crucibles, Cover Plates, Miscallaneous
All Telemark electron guns (exception: UHV guns) have crucibles made out of two parts. The upper part with the pockets can simply be removed in order to replace a defective crucible or change the pocket configuration (for instance changing from 4 to 6 pockets).
If the number of pockets is changed the cover plate must also be replaced.
All copper parts are machined out of OFHC copper, which is ideally suited for high vacuum applications.
We can deliver crucibles, cover plates and other spare parts within 2-4 weeks.

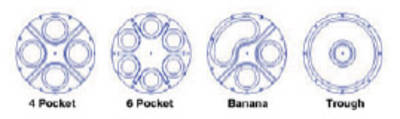

Standard Crucibles
| Part# | Configuration | Part# | Configuration | Part# | Configuration |
|---|---|---|---|---|---|
| Crucibles for Models 271, 277 for high water flow version, use -3 in the part number, delivery at extra cost | |||||
| Model 211 | Model 270 | 271/277 | |||
| 211-0042-2 | 1 x 1,5cm³ | 290-0227-1 | 6 x 40cm³ | 271-0209-1 | 4 x 7cm³ |
| 211-0048-2 | 1 x 4cm³ | 290-0270-1 | Ring, 383cm³ | 271-0217-1 | 4 x 12cm³ |
| 211-0050-2 | 1 x 7cm³ | 271-0210-1 | 4 x 15cm³ | ||
| 211-0051-2 | 1 x 12cm³ | Model 272 | 271-0220-1 | 4 x 25cm³ | |
| 211-0053-2 | 1 x 12cm³ | 251-0031-1 | 1 x 7cm³ | 271-0221-1 | 4 x 30cm³ w/web |
| 211-0077-2 | Clamps (2) | 251-0033-1 | 1 x 12cm³ | 271-0225-1 | 4 x 30cm³ w/o web |
| 251-0034-1 | 1 x 15cm³ | 271-0245-1 | 6 x 7cm³ | ||
| Model 231 | 251-0038-1 | 1 x 25cm³ | 271-0255-1 | 6 x 15cm³ | |
| 231-0215-3 | 4 x 1,5cm³ | 251-0040-1 | 1 x 30cm³ | 271-0257-1 | 6 x 25cm³ |
| 231-0240-3 | 4 x 4cm³ | 251-0043-1 | 1 x 40cm³ | 271-0227-1 | 4 x 40cm³ w/o web |
| 231-0250-3 | Pan 40cm³ | 251-0049-1 | 1 x 100cm³ | 271-0227-3 | 4 x 40cm³ w/web |
| 251-0077-1 | Clamps (2) | 271-0235-1 | 2x15/2x25cm³ | ||
| Models 241/247 | 271-0241-1 | 3x15/1x30cm³ w/web | |||
| 241-0240-1 | 4 x 4cm³ | Model 294 | 271-0270-1 | Trough, 235cm³ | |
| 241-0245-1 | 4 x 7cm³ | 294-0225-3 | 6 x 25cm³ | 271-0270-5 | Trough, 325cm³ |
| 241-0281-1 | 6 x 4cm³ | 294-0230-3 | 6 x 30cm³ | 271-0276-1 | Pan, 345cm³ |
| 241-0290-1 | Pan, 63cm³ | 294-0215-3 | 4 x 40cm³ | 271-0224-1 | 2x25cm³,Banana |
| 294-0260-3 | 12 x 7cm³ | 271-0259-1 | 3x15/3x25cm³ | ||
| Models 265/266 | 294-0240-3 | 8 x 15cm³ | 271-0269-1 | 2x30cm³,Banana | |
| 265-0245-3 | 4 x 7cm³ | 294-0245-3 | 8 x 25cm³ | 271-0260-1 | 8 x 7cm³ |
| 265-0265-3 | 4 x 15cm³ | 294-0235-3 | 6 x 40cm§ | 271-0263-1 | 4x7/4x12cm³ |
| 265-0220-3 | 4 x 25cm³ | 294-0270-3 | Trough, 475cm³ | 271-0268-1 | 2x40cm³, Banana |
| 265-0281-3 | 6 x 4cm³ | ||||
| 265-0282-3 | 6 x 7cm³ | Model 295, 10kW | |||
| 265-0255-3 | 6 x 15cm³ | 295-0205-1 | 6 x 100cm³ | ||
| 265-0290-3 | Trough, 190cm³ | 295-0232-1 | 10 x 40cm³ | ||
| 265-0295-1 | Pan, 204cm³ | 295-0245-1 | Pan, 1420cm³ | ||
| 265-0225-3 | 2x25cm³,Ban. | ||||
| 265-0260-3 | 8 x 7cm³ | Modell 295, 15kW | |||
| 295-0250-1 | 6 x 100cm³ |
Other configurations are available on request. Please contact us for a quotation.
Cover Plates
| Part Number | Model / Pockets | Part Number | Model / Pockets |
|---|---|---|---|
| 231-0073-1 | 231 4-pocket | 271-0074-1 | 271 6-pocket |
| 241-0073-1 | 241/247 4-pocket | 271-0075-1 | 271 8-pocket |
| 241-0074-1 | 241/247 6-pocket | 290-0074-1 | 270 6-pocket |
| 261-0073-2 | 261/267 4-pocket | 294-0073-1 | 294 4-pocket |
| 261-0074-2 | 261/267 6-pocket | 294-0074-1 | 294 6-pocket |
| 265-0073-1 | 265/266 4-pocket | 294-0075-1 | 294 8-pocket |
| 265-0074-1 | 265/266 6-pocket | 294-0078-1 | 294 12-pocket |
| 265-0075-1 | 265/266 8 pocket | 295-0075-1 | 295 6-pocket |
| 271-0073-1 | 271 4-pocket | 295-0078-1 | 295 12-pocket |
Miscallaneous Spare Parts
| Part Number | Description | Used on |
|---|---|---|
| 266-2000-1 | O-Ring-Kit | 266 |
| 281-0035-1 | Bearing | 266,277 |
| 272-0105-1 | Coil Rebuild Kit | 266,277 |
| 277-2000-1 | O-Ring-Kit | 277 |
| 241-2000-1 | Gasket Kit | 241 |
| 271-0034-1 | Bearing | 241 |
| 212-0080-1 | Coil Rebuild kit | 241, 247 |
| 247-2000-1 | Gasket Kit | 247 |
| 231-0035-1 | Bearing | 247 |
| 265-2000-1 | O-Ring-Kit | 265 |
| 271-0042-1 | Pivot Shaft | 265, 270/271 |
| 271-0035-1 | 1" Bearing | 265, 270/271 |
| 271-0035-1 | Side Drive Bearing | 271 |
| 271-0009-1 | Drive Bearing | 265, 270/271 |
| 272-0105-1 | Coil Rebuild kit | 265 |
| 271-2000-1 | O-Ring-Kit | 270/271 |
| 271-0152-1 | Bottom and Side Drive Bearing | 270 |
| 271-0152-1 | Side Drive Bearing | 271 |
| 271-0042-2 | Coil Rebuild Kit | 270/271 |
